VSX-930
7.2-Channel AV Receiver with Dolby Atmos, MCACC PRO calibration system, 4K Ultra HD Scaler, 7 HDMI input with HDCP 2.2, Hi-Res Audio playback, Spotify Connect and Built-in Dual Band WiFi & Bluetooth
Get the ultimate home entertainment experience.
The VSX-930 is the perfect power house to complete your home entertainment system. It offers up to 150 Watts of clear audio reproduction across all of its 7 channels, plus dual subwoofer preouts for optimal frequency
The VSX-930 combines the latest connectivity and performance features and supports AirPlay, MHL, HTC Connect & DLNA audio networking. Connect your smartphone, tablet or laptop without hassle, either wired via LAN and USB or wireless via built-in Dual Band WiFi and Bluetooth. It allows you to easily play back Hi-Res audio content up to 192kHz/24bit and even DSD 2.8MHz/5.6MHz. Get direct access to streaming services such as Spotify Connect and vTuner internet radio and enjoy your favourite music. On top, this AV receiver is ready to pass through 4K Ultra HD video signals to a compatible display. It even upscales lower resolution signals into 4K Ultra HD (up to 60p), allowing you to enjoy the highest quality picture available today.
The VSX-930 is available in black (VSX-930-K) and silver (VSX-930-S).
Audio Features
- Channels: 7
- Amplification Type: Direct Energy
- 150 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1 ch Driven)
- 105 W/ch (8 ohms 20 Hz-20 kHz THD 0.09 % 1 ch Driven)
- Dolby Atmos®/Dolby® TrueHD/Dolby Digital Plus/Dolby Surround
- DTS-HD Master Audio/DTS-ES/DTS Neo:6
- DSD Direct Playback via Network/USB (2.8 MHz)
- DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1 ch, 2 ch)
- Digital Core Engine with Texas Instruments Aureus™ DSP x 2
- Hi-bit24 Audio Processing
- 192 kHz/24-bit SABRE™ Premier Audio DAC (ES9006S) for 7.2ch
- HDMI Audio Return Channel (ARC)
- MCACC Pro Room Calibration
- Full Band Phase Control
- Auto Phase Control Plus/Phase Control Plus
- Standing Wave Control
- 3D Time Axis Measurement
- Polarity Check
- Automatic Crossover Detection
- Reverb Before and After Calibration Results (iControlAV5 on iPad)
- Subwoofer EQ (4 Band)
- Bass Management System
- Sound Enhancements
- Advanced Sound Retriever (Multi-ch)
- Sound Retriever Link
- Auto Sound Retriever/Auto Sound Retriever for ARC
- Auto Level Control (Multi-ch)
- Virtual Speakers (Wide/Height/Surround Back)
- Advanced Surround Modes (Action, Drama, Advanced Game, Sports, Classical, Rock/Pop)
- Front Stage Surround
- Sound Retriever Air, Phones Surround
- ECO Mode 1, ECO Mode 2
Video Features
- HDMI 7 in/2 out (1 for MAIN, 1 for MAIN/HDZONE)
- 3D Ready (Blu-ray Disc®, Broadcast, and Games)
- Deep Colour (36-bit), “x.v. Colour”
- Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:2/36-bit)
- Video Scaler (1080p to 4K) with Super Resolution
Network Features
- Apple AirPlay Certified
- DLNA Certified™ (1.5)
- HTC Connect™ Certified
- Windows® 8.1 Compatible
- Music File Playback/Seek*1 via Network/US B: AIFF , Apple Lossless, WAV, FLAC, MP3, WMA, AAC, DSD
- 192 kHz/24-Bit Audio playback (AIFF , Apple Lossless, WAV, FLAC)
- Multi-Channel (5.1ch, 5.0ch) Audio Playback (WAV*2, FLAC*3)
- Gapless Playback for AIFF , Apple Lossless, WAV, FL AC, AAC, MP3, DSD
- Spotify® Digital Music-Streaming Service Ready*4
- Internet Radio with vTuner
Operating Features
- iPod Digital Transmission via Front USB Terminal
- Android™ Audio/Video Playback with MHL™
- Start-up Navi (Initial Setting App) Ready (iOS/Android)*5
- AVNavigator (Wiring Navi/Interactive Operation Guide)
- iControlAV5 Remote Control App Ready (iOS/Android)*5
- HDMI ZONE Out (HDZONE)
- Charges iPod/iPhone
- Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
- Built-in Bluetooth® Wireless Technology (Version: 2.1 + EDR, Profile: A2DP/AVRCP, Codec: SBC/AAC)
- BT Audio Auto Function
- Firmware Update via Internet or USB
- Graphical User Interface (GUI ) with Album Artwork (HDMI only)
- Auto Power Down for Each Zone
- Power Save for HDMI Standby Through
- AM/FM Tuner 63 Presets
- Sleep Timer
- Learning Remote Control (Luminous)

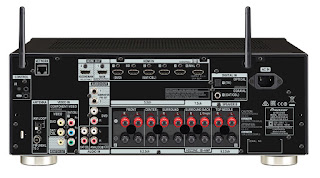

Connections
- HDMI 6 in (5 assignable, 1 for HDMI/MHL)
- HDMI 2 out (1 for MAIN, 1 for MAIN/HDZONE)
- Ethernet 1 in
- AV (Composite) 2 in
- Audio 1 in (assignable)
- Digital Coaxial 1 in (assignable)
- Digital Optical 1 in (assignable)
- Component Video 1 in (assignable)
- Monitor Composite 1 out
- Subwoofer Preout x 2
- Speaker 9 ch out (FRONT , CENT ER, SURROUND, SURROUND BACK, TMd/FW/Speaker B)
- IR 1 in/1 out
