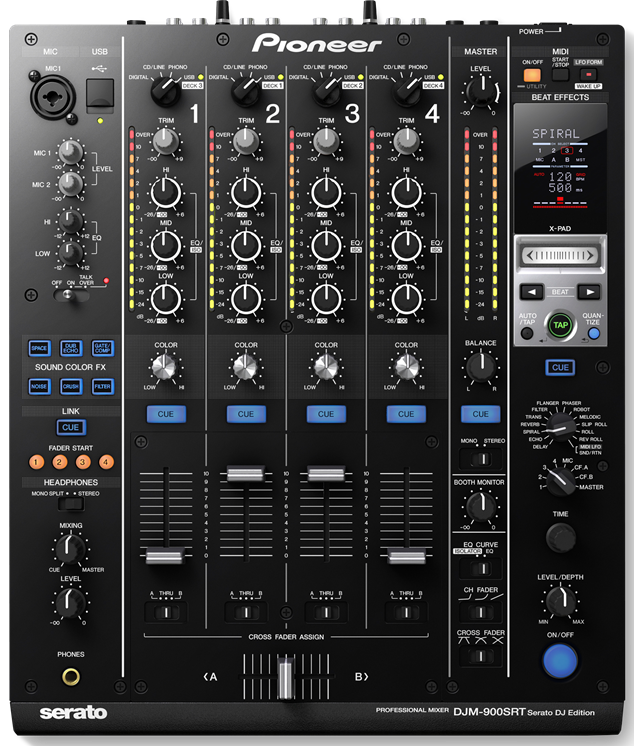

DJM-900SRT

DJM-900SRT

High-performance Serato DJ mixer.

With an inbuilt Serato sound card, the DJM-900SRT four-channel mixer allows native control of the hugely popular Serato DJ software.
The DJM-900SRT inherits all the high-performance features of the DJM-900NXS, such as 6 high-quality Sound Colour FX, 13 Beat FX and intuitive X-PAD control.

On-board Serato sound card

Connect the DJM-900SRT to your PC/Mac via USB to get plug-and-play control of Serato DJ.

Effects with simple controls

The Sound Color FX is loaded in each channel of the mixer, and dynamic arranging and mixing of music will be possible by adding effects to sound regions.

Professional sound design

This mixer is equipped with a 32-bit A/D converter to digitise and enhance sound quality for all outputs, while the 32-bit digital signal processor suppresses digital noise. Even analogue noise is reduced through balanced hybrid operation amps and output circuits.

Robust faders

Our robust Magvel Faders ensure smooth control over long-term use. Two metal shafts support the fader knobs, while the contact-free magnetic system is designed to endure millions of performances.

Advanced connectivity

With ProDJ Link you can connect multiple players, turntables or laptops via LAN connection and share a single source. Combine this with rekordbox to access pre-prepared loops and cues, sync the beat with the master deck, and access a host of advanced pro-DJ features.

Quantized Beat FX

Quantize snaps Beat FX, cues and loops to the rekordbox beat grid for precision performances.

Channel-assignable BEAT FX

The mixer boasts 13 channel-assignable BEAT FX to mash up the music in sync with the BPM, such as DELAY, ECHO, SPIRAl, REVERB, FILTER, FLANGER, ROLL and REVERSE ROLL.

One finger manipulation

Use the X-PAD to simultaneously engage BEAT FX while adjusting the parameters, all with just one finger.

MIDI controller

Fully assignable MIDI functionality sends control information to external devices to be used as a MIDI controller.

EQ isolator on each channel

Use the 3-band EQ isolator to control the high, mid and low frequencies on each channel independently.

Specifications

Main Features

MIDI Control	Full assignable MIDI controls
DVS Control	Serato DJ
ProDJ Link	Yes
P-LOCK Fader Caps	Yes
Auto Standby	Yes
rekordbox Link	Yes

Specifications

Width	331 mm
Height	108 mm
Depth	404 mm
Weight	7.1 kg
Rack Mount	Yes
Frequency Range	20 - 20,000 Hz
Sampling Rate	96 kHz
A/D Converter	24 bit
D/A Converter	32 bit
S/N Ratio Line	105 dB
S/N Ratio Phono	88 dB
S/N Ratio Mic	84 dB
Crosstalk Line	82 dB
Distortion	< 0.004 %
Headroom	19 dB
Power Consumption	42 W

Master

Master Balance	Yes
Stereo/Mono Switch	Yes
Level Meter Size	15 segment
Master Out Attenuator	Yes

Channels

EQ/ISO	3 band
ISO Range	Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -∞ ~ +6 dB
Level Meter Type	Individual
Level Meter Size	15 segment
Peak Limiter	Yes

Performance Control

Channels	4
Sound Colour FX	Crush Dub Echo Filter Gate/Comp Noise Space
Beat FX	Delay Echo Filter, Flanger Melodic Phaser Reverb, Reverse Roll, Robot, Roll Slip Roll, Spiral Trans
X-PAD	Yes
rekordbox Quantize	Yes

Effect/Sampler

3-Band Isolator	Yes
Auto BPM Counter	Yes
Effect Level & Depth Volume	Yes
MIDI Global Clock	Yes

Crossfader

Crossfader Type	Carbon Rail with P-Lock Fader Cap
CURVE Assignable	Yes
Field Replaceable	Yes
Fader Curve	3

Mic

Mic Connection	Neutrik Combo
Mic EQ	2 band
Mic EQ Range	-12 dB ~ +12 dB
Talkover	3 Position Switch
Talkover Attenuator	Yes

MIDI Info

Assignable Controls	61
MIDI Out (DIN)	1 (5P DIN)
MIDI LFO	Yes

Sound card

Connection	USB
Stereo Inputs	4
Stereo Outputs	4
Sample Rate	24 bit
Frequency	44.1 kHz 48 kHz 96 kHz

Terminals

Inputs	1 MIC (1/4 inch Jack) 1 MIC (XLR/Jack Combo) 1 RETURN (1/4 inch Jack) 4 CD/LINE (RCA) 4 PHONO (RCA) 4 S/PDIF Digital (RCA)
Outputs	1 BOOTH (1/4 inch Jack) 1 HEADPHONE MONITOR (1/4 inch Jack) 1 S/PDIF Digital (RCA) 1 SEND (1/4 inch Jack) 2 MASTER (XLR, RCA)
LAN	1
USB	1 USB B port
